4 Person Large HBOT Chamber
Features
Elevated Hyperbaric Recovery
The largest chamber in the range, designed for shared recovery and higher-volume environments. With capacity from two to four people, it allows teams, athletes or multiple clients to recover simultaneously — making it particularly well suited to professional recovery spaces, wellness facilities and performance environments.
Spacious, refined and built for comfort, with integrated climate control, air purification and advanced oxygen delivery.
Included:
Integrated reclining seating, climate control, air purification and central controls. Optional BIBS and integrated red light therapy are available.
Designed to combine performance, comfort and versatility, the Capsule Sitting Chamber creates a premium shared recovery experience — bringing advanced hyperbaric technology into a beautifully considered, multi-functional environment.
Chamber Specification
| Spec | Details |
|---|---|
| Chamber Type | Hard-shell seated hyperbaric chamber |
| Capacity | Up to 4 people |
| Chamber Dimensions | 2070 × 2000 × 1750 mm |
| Chamber Depth | 1651mm |
| Chamber Net Weight | Approx. 700 kg |
| Package Dimensions | 2090 × 2020 × 1770 mm |
| Chamber Gross Weight | Approx. 980 kg |
| Pressure Options | 1.1–2.0 ATA |
| Seating | Integrated electric reclining seats - massage chairs optional. Can be configured to specific requirements. |
| Positioning | Inclined / reclining |
| Oxygen System | Centralised oxygen supply system (BIBS advised but optional) |
| Control System | Central host console |
| Climate Control | Air conditioning available |
| Air Purification | IFD sterilisation + multi-stage filtration |
| BIBS | Optional |
| Integrated Red Light Therapy | Optional |
| Intended Environment | Premium homes, private recovery spaces, wellness facilities & recovery centres |

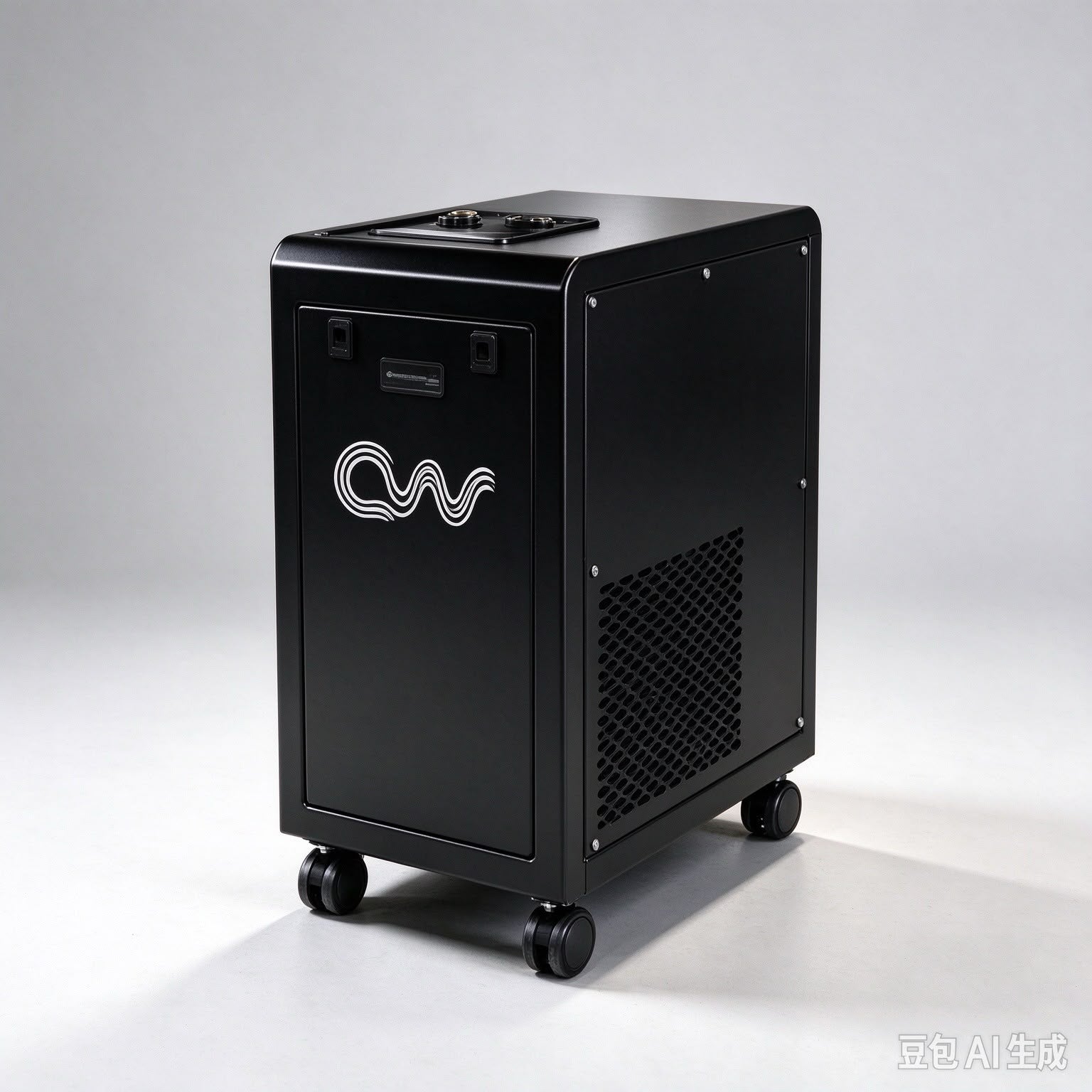

3- in – 1 main unit Specification
| Spec | Details |
|---|---|
| Unit Type | 3-in-1 integrated main unit |
| Functions | Oxygen concentrator + air conditioner + air compressor |
| Rated Power | 1100 W |
| Main Unit Dimensions | 570 × 520 × 905 mm |
| Main Unit Net Weight | Approx. 85 kg |
| Package Dimensions | 1060 × 610 × 1060 mm |
| Main Unit Gross Weight | Approx. 165 kg |
| Control Mode | Fixed intelligent touchscreen |
| Oxygen Generation | PSA |
| Oxygen Outlet Pressure | 100–140 kPa |
| Oxygen Production Flow | 15 L/min |
| Oxygen Concentration | 90% ±3% |
| Noise Level | ≤50 dB |
| Air Conditioning | Water-cooled air conditioner |
| Temperature Control Range | 5°C–55°C |
