1 person – Clam Shell
Regular price
$79,000.00
Unit price
per
Features

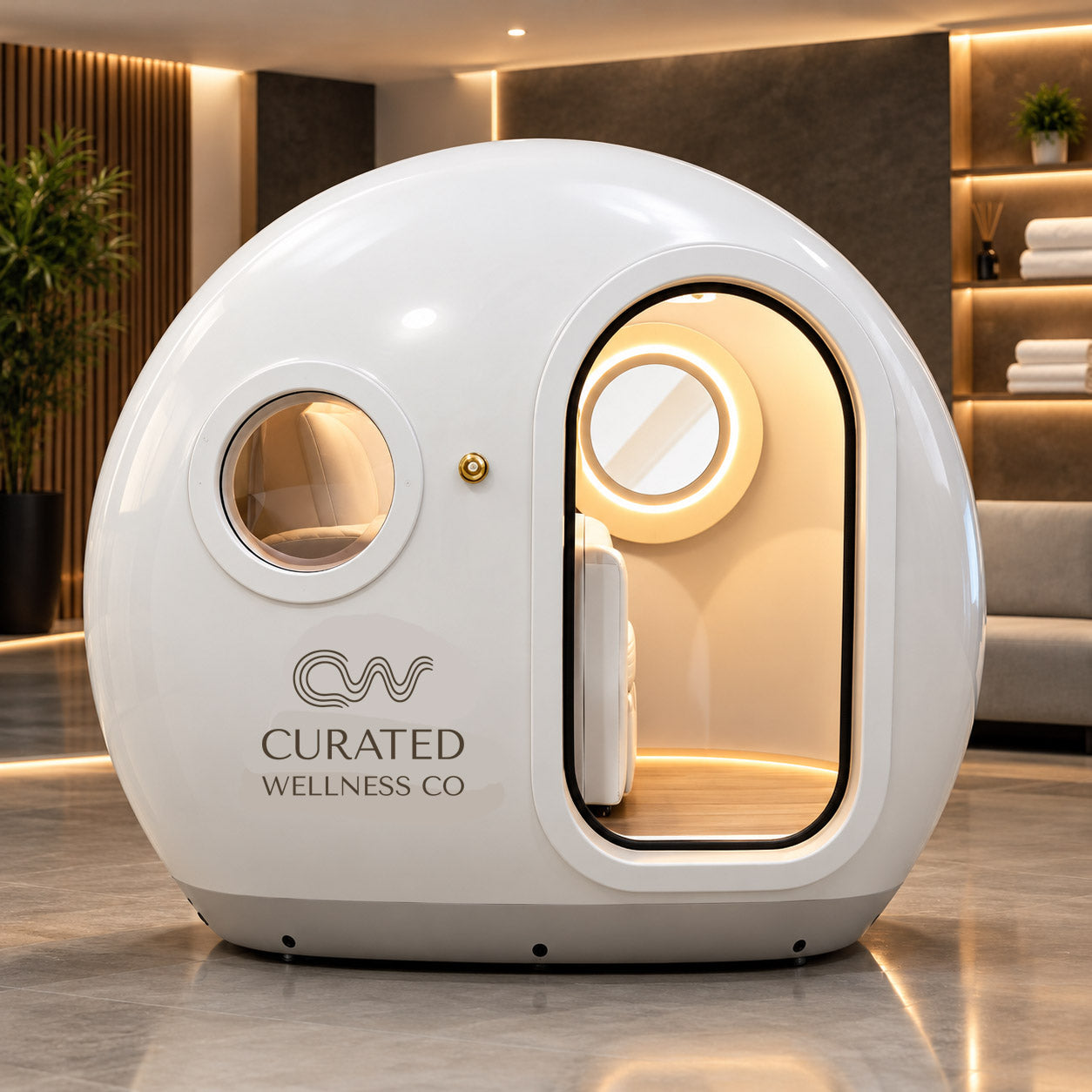

A refined single-person hyperbaric chamber combining Aviation-grade aluminum alloy construction with a spacious, comfortable interior. The Clam Shell HBOT device features a zero-gravity electric sofa, integrated oxygen delivery, climate control and advanced air filtration for a comfortable recovery environment.
With its lightweight construction and streamlined footprint, it is well suited to recovery spaces, rehabilitation clinics luxury homes and boutique wellness environments.
Chamber Specification
| Spec | Details |
|---|---|
| Chamber Type | Single-person hard-shell |
| Capacity | 1 person |
| Construction |
Aviation-Grade Magnesium Aluminum Alloy |
| Pressure | 2.0 ATA |
| Chamber Dimensions | 2000 x 980 x 1700mm |
| Chamber Net Weight | Approx. 330 kg |
| Package Dimensions | 2100 x 1100 x 1900mm |
| Chamber Gross Weight | Approx. 430 kg |
| Seating | Aviation-grade zero-gravity electric sofa with seated and reclined positions |
| Oxygen System | Standard oxygen inhalation system |
| Control System | Touch control panels inside & outside |
| Door | PC endurance plate door |
| Filtration & Disinfection | 5 μm medical-grade filtration + negative ion system |
| Dehumidification | Built-in air dehumidifier |
| Interior Noise Level | ≤20 dB |
| Interior Diffused Oxygen Concentration | ≤23% |
| Interior Humidity | Approx. 26% |
| Negative Ion Concentration | Approx. 6,000 ions/cm³ |
| Colour Options | Black / White |

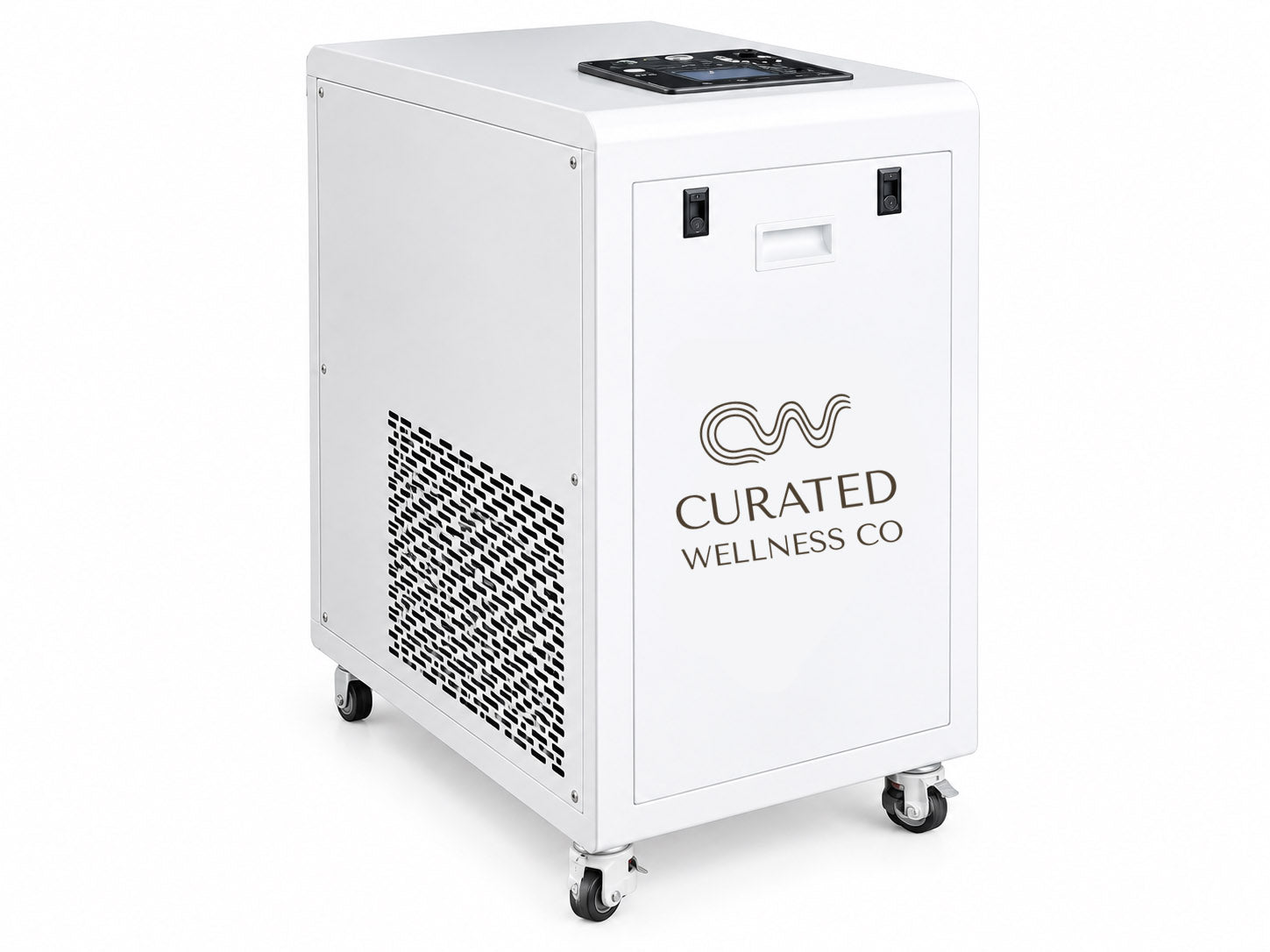

Main Unit 3-in-1 Specification
| Spec | Details |
|---|---|
| Main Unit Type | 3-in-1 Integrated Main Unit |
| Main Unit Functions | Oxygen generator + air compressor + air conditioner |
| Rated Power | 1-seat: 850–1100 W |
| Control Mode | Fixed intelligent touchscreen |
| Oxygen Outlet Pressure | 100–140 kPa |
| Oxygen Generation Mode | PSA |
| Oxygen Production Flow | 15 L/min |
| Oxygen Concentration | 90% ±3% |
| Noise Level | ≤50 dB |
| Air Conditioning Mode | Water-cooled air conditioner |
| Temperature Control Range | 5–30 °C |
